MiraFount Waterers

Model #3390 Miraco’s Mira-Fount waterers feature:

• Polyethylene construction
• No sharp edges
• Tough, high-impact resistant “Rockite” material
• Durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Patented Miraco roll-away ball closures
• Extra insulation above the valve area
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sealed bottoms
• Sloped bottoms for easier cleaning – a MiraFount exclusive
• Minimum head required



Miraco Catalog PDF

Contact Wille Construction Miraco Dealer

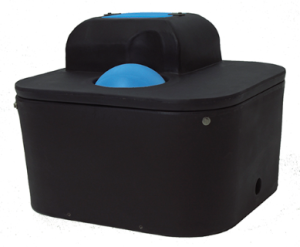

MiraFount 3330
MiraFount 3330
CAPACITY 50 head beef
25 head dairy
GALLONS 15   (57 liters)
SPECIFICATIONS One 8.75” opening / 9” ball closure
DIMENSIONS 28” x 26” x 14”   (71 x 66 x 35.5 cm)
WEIGHT 59 pounds   (27 kg)
DRINKING HEIGHT 14”   (35.5 cm)

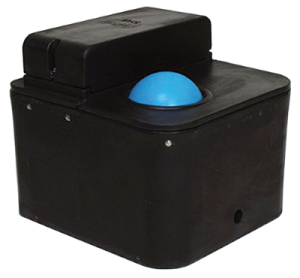

MiraFount 3345
MiraFount 3345
CAPACITY 75 head beef
30 head dairy
GALLONS 30   (112 liters)
SPECIFICATIONS One 10” opening  (10-3/4” ball)
DIMENSIONS 29” x 31” x 18”   (73.6 x 109 x 66 cm)
WEIGHT 95 pounds   (43 kg)
DRINKING HEIGHT 18”   (66 cm)

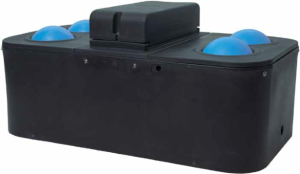

MiraFount 3354-S
MiraFont 3354-S
CAPACITY 200 head beef
90 head dairy
GALLONS 70   (265 liters)
SPECIFICATIONS Four 9.5” openings / 10.75” ball closures (convertible)
DIMENSIONS 57.5” x 32.5” x 19”   (146 x 82 x 48 cm)
WEIGHT 152 pounds   (69 kg)
DRINKING HEIGHT 19”   (48 cm)

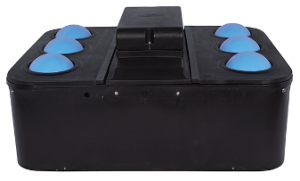

MiraFount 3370-S
MiraFount 3370-S
CAPACITY 250 head beef
120 head dairy
200 cow/calf units
GALLONS 100   (378 liters)
SPECIFICATIONS Six 9.5” openings / 10.75” ball closures
DIMENSIONS 57.5” x 45.5” x 20”   (146 x 115 x 51 cm)
WEIGHT 216 pounds   (98 kg)
DRINKING HEIGHT 20”   (51 cm)

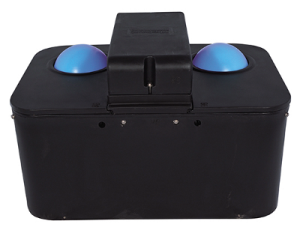

MiraFount 3390
MiraFount 3390
For beef and dairy:
  • Split top end panels allow you to easily remove top end panels to help get new cattle started fast.
  • Remove the panels when you need more capacity for a few extra head.
CAPACITY 150 head beef
60 head dairy
GALLONS 44   (166.5 liters)
SPECIFICATIONS Two 10” openings / 10.75” ball closures (convertible)
DIMENSIONS 43” x 29” x 20”   (109 x 73.6 x 51 cm)
WEIGHT 126 pounds   (57 kg)
DRINKING HEIGHT 20”   (51 cm)

MiraFount 3465
MiraFount 3465
CAPACITY 100 head beef
40 head dairy
GALLONS 20   (75 liters)
SPECIFICATIONS Two 9.25” openings / 10” ball closures
DIMENSIONS 36” x 24” x 18”   (91 x 61 x 46 cm)
WEIGHT 79 pounds   (36 kg)
DRINKING HEIGHT 18”   (46 cm)
