WaterMaster FAMILY


WaterMaster Deep 54
Features
The WaterMaster 54 is an 4.5 foot long, wide trough, automatic livestock waterer with all around access to drink. Built with cattle producers in mind to handle large herds. Waters up to 200 beef cattle or 100 dairy cattle. Drink height 22″

Features

  • All surfaces slope to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow optional
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
Specifications

Length  54in/137.16cm

Width  33in/83.82cm

Overall Height  28in/71.12cm

Shipping Weight  125lb/56.7kg

Drinking Height  22in/55.88cm

Capacity  16gal/60.57L

Herd Capacity  200 beef, 100 dairy

WaterMaster 54

A popular choice in feedlots, pastures, and dairies all across North America, the WaterMaster Series features a heavy one-piece, fully insulated, polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems. The WaterMaster 54 is a 4.5 foot long automatic livestock waterer with all around access to drink. Features a wide trough for split fence access and standard constant flow option.

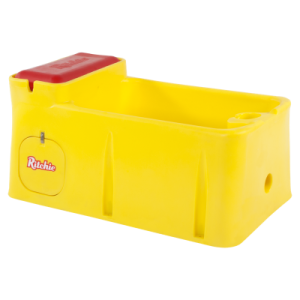

WaterMaster Deep 54
Features

The WaterMaster 54D is an 4.5 foot long, wide and deep trough, automatic livestock waterer with all around access to drink. Built with cattle producers in mind to handle large herds. Waters up to 200 beef cattle or 100 dairy cattle. Drink height 22″

Features

  • All surfaces slop to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow Standard
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
  • Featuring a deep trough for larger capacity
Specifications

Length  54in/137.16cm

Width  33in/83.82cm

Overall Height  28in/71.12cm

Shipping Weight  125lb/56.7kg

Drinking Height  22in/55.88cm

Capacity  54gal/204.41L

Herd Capacity  200 beef, 100 dairy

WaterMaster Deep 54

A popular choice in feedlots, pastures, and dairies all across North America, the WaterMaster Series features a heavy one-piece polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems. The WaterMaster 54D provides more capacity than our standard 54 with its deep trough and allows all around access to drink. Features a wide trough for split fence access and standard constant flow option.

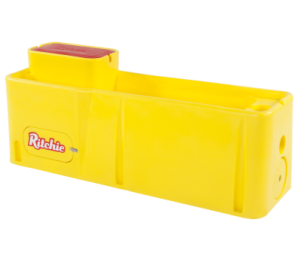

WaterMaster 600
Features
The WaterMaster 600 is a 6 foot long narrow automatic livestock waterer with all around access to drink. Use in crossovers and alleyways of dairy barns or in feedlots. Waters up to 250 beef cattle or 125 dairy cattle. Drink height 24″

Features

  • All surfaces slope to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow optional
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
Specifications

Length  72in/182.88cm

Width  24in/60.96cm

Overall Height  28.5in/72.39cm

Shipping Weight  140lb/63.5kg

Drinking Height  24in/60.96cm

Capacity  28gal/105.99L

Herd Capacity  250 beef, 125 dairy

WaterMaster 600

A popular choice in dairies, feedlots, and pastures all across North America, the WaterMaster Series features a heavy one-piece, fully insulated, polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems. WaterMaster 600 is a 6 foot long automatic livestock waterer featuring a narrow deep trough, making it ideal for use in crossovers and alleyways of dairy barns. Constant flow feature optional (kit sold separately)

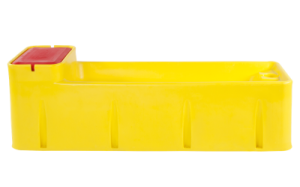

WaterMaster 90 #16467
Features
The WaterMaster 90 is a 7.5 foot long, wide trough, automatic livestock waterer with all around access to drink. Built with cattle producers in mind to handle large herds. Waters up to 300 beef cattle or 150 dairy cattle. Drink height 22″

Features

  • All surfaces slope to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow standard
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
Specifications

Length  90in/228.6cm

Width  33in/83.82cm

Overall Height  28in/71.12cm

Shipping Weight  180lb/81.65kg

Drinking Height  22in/55.88cm

Capacity  30gal/113.56L

Herd Capacity  300 beef, 150 dairy

WaterMaster 90

A popular choice in feedlots, pastures, and dairies all across North America, the WaterMaster Series features a heavy one-piece polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units. And, the WaterMaster won’t pit or cause cleaning problems. The WaterMaster 90 is an 7.5 foot long deep trough automatic livestock waterer with all around access to drink. Featuring a wider trough for split fence access and the constant flow option is standard.

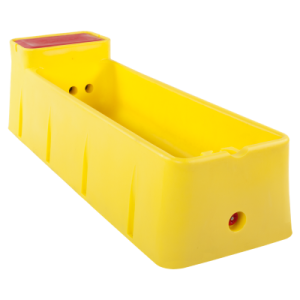

WaterMaster 96 #18007
Features
The WaterMaster 96 is a 8 feet long, wide and deep trough, automatic livestock waterer with all around access to drink. Built with cattle producers in mind to handle large herds. Waters up to 300 beef cattle or 150 dairy cattle. Drink height 22″

Features

  • All surfaces slope to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow standard
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
Specifications

Length96in/243.84cm

Width33in/83.82cm

Overall Height28in/71.12cm

Shipping Weight200lb/90.72kg

Drinking Height22in/55.88cm

Capacity75gal/283.91L

Herd Capacity300 beef, 150 dairy

WaterMaster 96

A popular choice in feedlots, pastures, and dairies all across North America, the WaterMaster Series features a heavy one-piece, fully insulated, polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems. WaterMaster 96 provides the most water capacity in our WaterMaster series when more reserve is required for low flow applications. The 96 is an 8 foot long deep trough automatic livestock waterer with all around access to drink. The wide trough allows for split fence access and the constant flow option is standard.

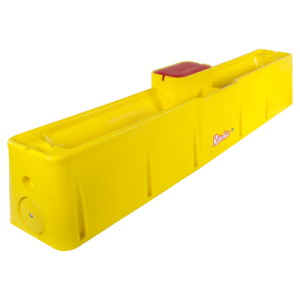

WaterMaster 1200 #18053
Features
The WaterMaster 1200 is a 12 foot long narrow automatic livestock waterer with all around access to drink. Use in crossovers and alleyways of dairy barns or in feedlots. Waters up to 500 beef cattle or 250 dairy cattle. Drink height 24″

Features

  • All surfaces slop to drain for easy cleaning
  • Water seal keps cold air away from valve
  • Finger lift service cover: no tools, springs or clips
  • Fastest valve in the industry, allows lower storage volume for fresher water
  • Constant flow optional
  • Optional Immersion heater and supply line heater available
  • Built for rugged feedlot, pasture and dairy conditions
Specifications

Length  144in/365.76cm

Width  24in/60.96cm

Overall Height  28.5in/72.39cm

Shipping Weight  250lb/113.4kg

Drinking Height  24in/60.96cm

Capacity  60gal/227.12L

Herd Capacity  500 beef, 250 dairy

WaterMaster 1200

A popular choice in dairies, feedlots, and pastures all across North America, the WaterMaster Series features a heavy one-piece polyethylene body that holds up even under the weight of cattle hooves. The trough slopes to a large drain, and can be emptied, cleaned, and refilled in a fraction of the time other waterers take to empty. WaterMaster requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems. WaterMaster 1200 is a 12 foot long automatic livestock waterer featuring a narrow deep trough, making it ideal for use incrossovers and alleyways of dairy barns. Constant flow feature optional (kit sold separately)

Immersion heaters provide added protection to all plastic Ritchie waterers during the winter. Minimum maintenance is required to keep them functioning for several years.
