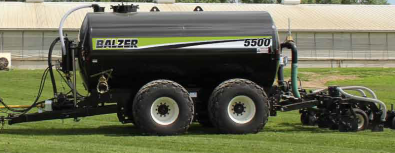

Balzer Vacuum Tanks
2015 Vacuum Tanks PDF Specifications
Standard Features:
- Fully independent running gear for mounting tank and injectors
- Independent Axles
- Hydraulic suspension
- Ring type baffle system
- 5 or 6 inch Ultra solid spindle and hub up to 25,000 lbs.
- MEC 6500 vacuum pump (4,300 – 5,500 gallons) and MEC 8000 vacuum pump (6,000 – 6,800 gallons)
- and Jurop R260 vacuum pump (7,350 – 9,500 gallons)
- 1000 R.P.M. PTO (1 3/8 inch) or 540 R.P.M. PTO
- 6 inch brass hydro pneumatic actuated discharge valve
- 6 inch side load port with manual brass valve
- Spray deflector
- 16 foot long suction hose assembly (6 inch diameter)
- Front mounted load level indicator
- Pressure/vacuum gauge and pressure relief
- 26 inch top hatch
- Full 1/4 inch steel tank
- Tractor actuated hydraulic disc brakes on two wheels with spring return
- Auto-Trail Steerable Axle System on rear axle with tractor actuated hydraulic lock-outs
- ASAE approved safety chain
- 2 inch Bull Pull hitch
- LED light kit with 7 pin connector
- Down pressure block
