Schaefer Dairy Ventilation Fans
ImageGen

dairylandexhaustfans

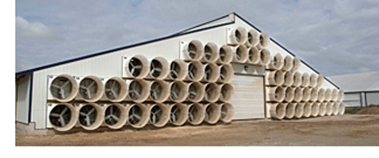

Fiberglass Cone Fans

Features and Benefits:

  • High Volume configurations deliver up to 35,000 cfm
  • High Efficiency configurations deliver up to 21 cfm/watt at 0.10″ static pressure
  • VFD compatibility on all 3-phase motors for increased energy efficiency and ventilation flexibility
  • Heavy-duty, corrosion resistant aluminum shutters and steel wire guard protected by powder coat over zinc plating
  • Belt drive system with an automatic self-adjusting belt tensioner
  • Remote lubrication kits available for convenient bearing greasing
  • Non-conductive kits available for additional fan protection and safety
  • Narrow profile, smooth-both-sides, UV protected fiberglass housing for durability, easy cleaning and pleasing aesthetics
  • 3-wing or 5-wing blades
  • One- or two-piece cones
  • Remote Lubrication System optional
  • 15 year housing warranty
  • 2 year warranty
  • Made in the USA
Schaefer Galvanized Steel Panel Fans

Galvanized Steel Panel Fans

Features and Benefits:

  • Industry leading airflow and efficiency with airflows up to 40,000 cfm and efficiencies up to 40 cfm/watt
  • Lab tested design for maximum performance and quiet operation
  • Heavy gauge galvanized and powder coated steel components
  • Thermally protected TEAO motors for long life
  • Optional post and column mounts available
  • Available in 24″, 36″, 48″, 52″ and 54″ sizes
  • 3-wing or 5 wing blade style
  • 2 year warranty
  • Made in the USA

Mount panel fans seven feet or higher.
Direct flow circulation fans

dairydffans

Direct Flow Circulation Fans

Features and Benefits:

  • Polymer housing with UV inhibitors and gloss finish for durability and corrosion resistance
  • Heavy-duty, totally enclosed, maintenance free, energy efficient motors for long life
  • Galvanized (3-wing or 5- wing), stainless (3-wing or 6-wing) and cast aluminum (3-wing) blades available
  • 2 year warranty
  • Made in the USA

Mount panel fans seven feet or higher.

Mount models without OSHA guards seven feet or higher.
Schaefer's Polyethylene Exhaust Fans

Polyethylene Exhaust Fans

Features and Benefits:

  • Polyethylene construction for corrosion resistant and effortless cleaning
  • Energy efficient, maintenance free motor for both time and money savings
  • Direct drive
  • Motor and blade combination designed for best-in-class performance
  • Integrated PVC or aluminum shutters
  • Designed to be flush mounted with interior walls up to 10″ thick for use in a broad range of facilities
  • Ships fully assembled for ease of installation
  • 25 year housing warranty
  • 2 year product warranty
  • Made in the USA
Schaefer's Shutter-Style Exhaust Fans

Shutter-Style Exhaust Fans
Features and Benefits:

  • Low profile for thin-walled buildings and where space is limited
  • Aluminum blade and rugged PVC shutter for durability and longer life
  • Heavy-duty totally enclosed and maintenance free motors
  • Mounts flush to the exterior wall
  • Available in 12″, 16″, 20″ and 24″ sizes
